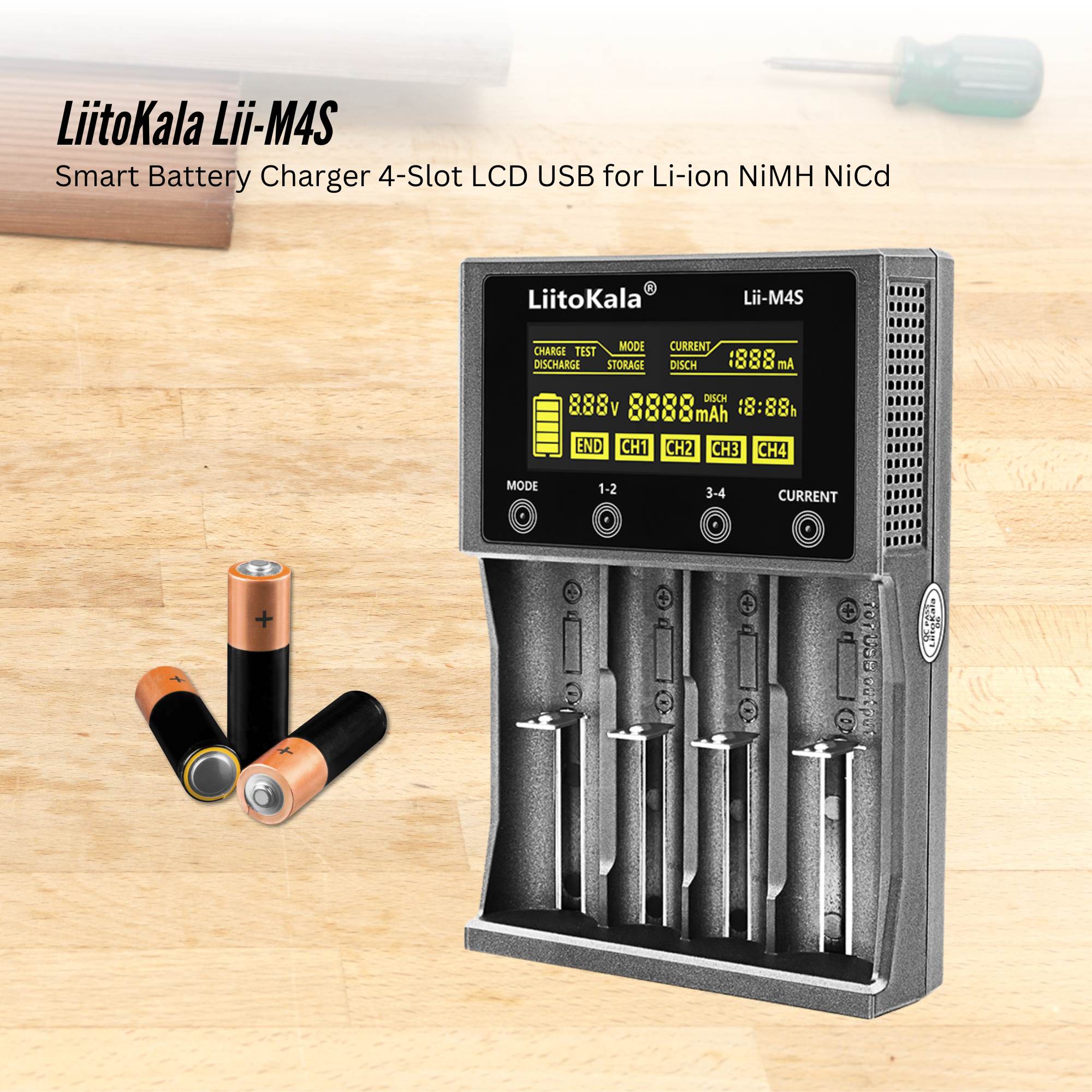

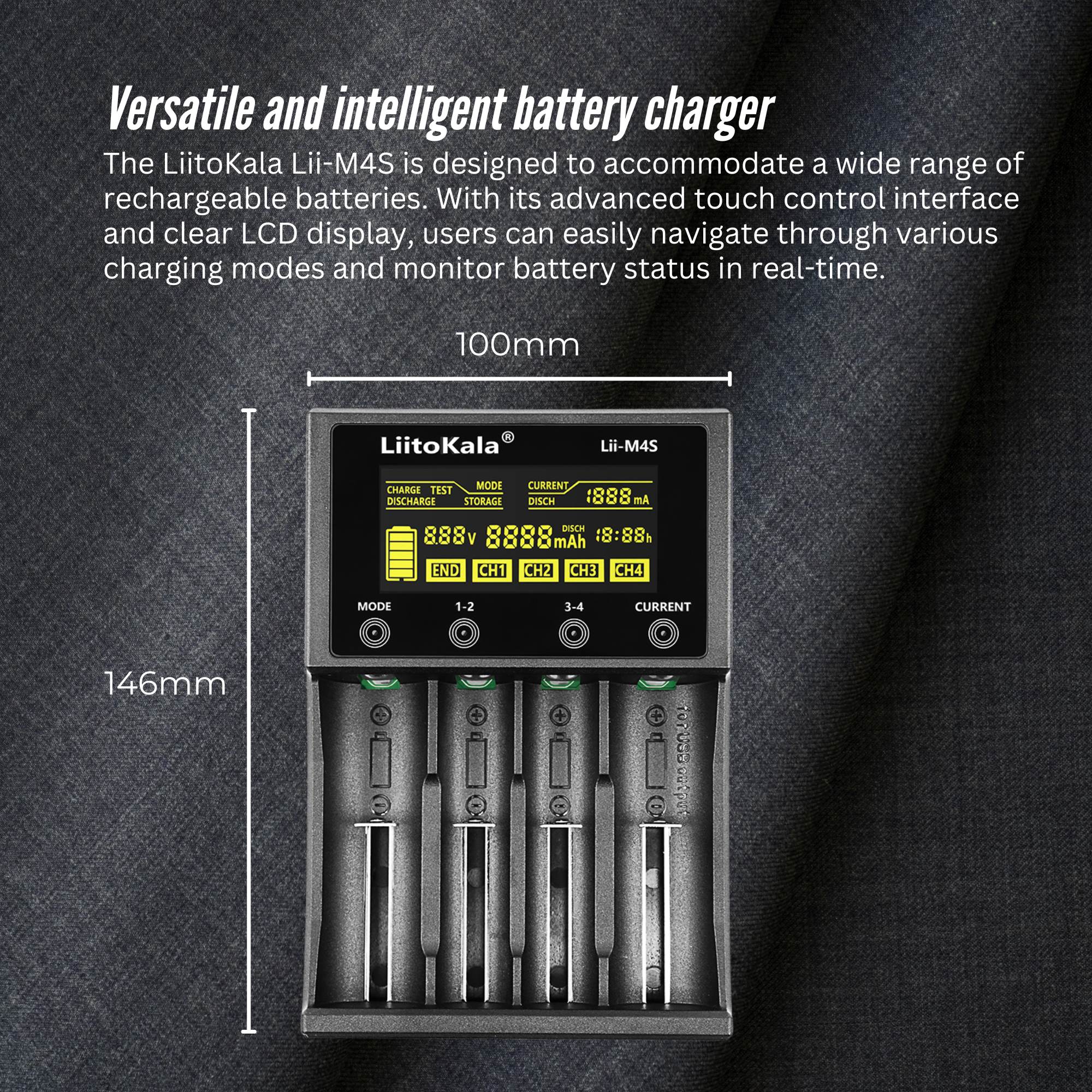

The LiitoKala Lii-M4S is a versatile and intelligent battery charger designed to accommodate a wide range of rechargeable batteries. With its advanced touch control interface and clear LCD display, users can easily navigate through various charging modes and monitor battery status in real-time. The charger supports multiple battery chemistries and sizes, making it an ideal choice for both everyday users and enthusiasts.

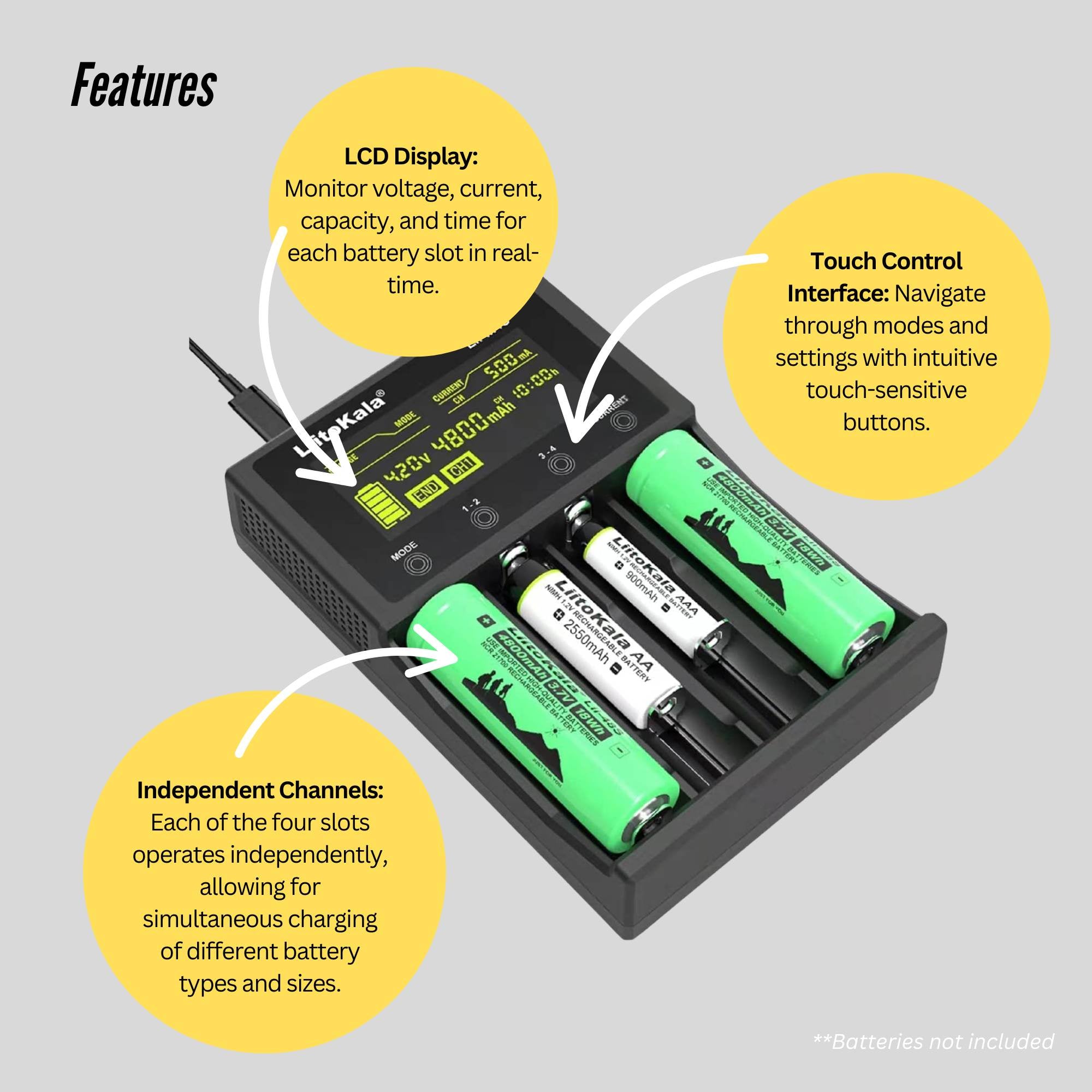

Features:

• Touch Control Interface: Navigate through modes and settings with intuitive touch-sensitive buttons.

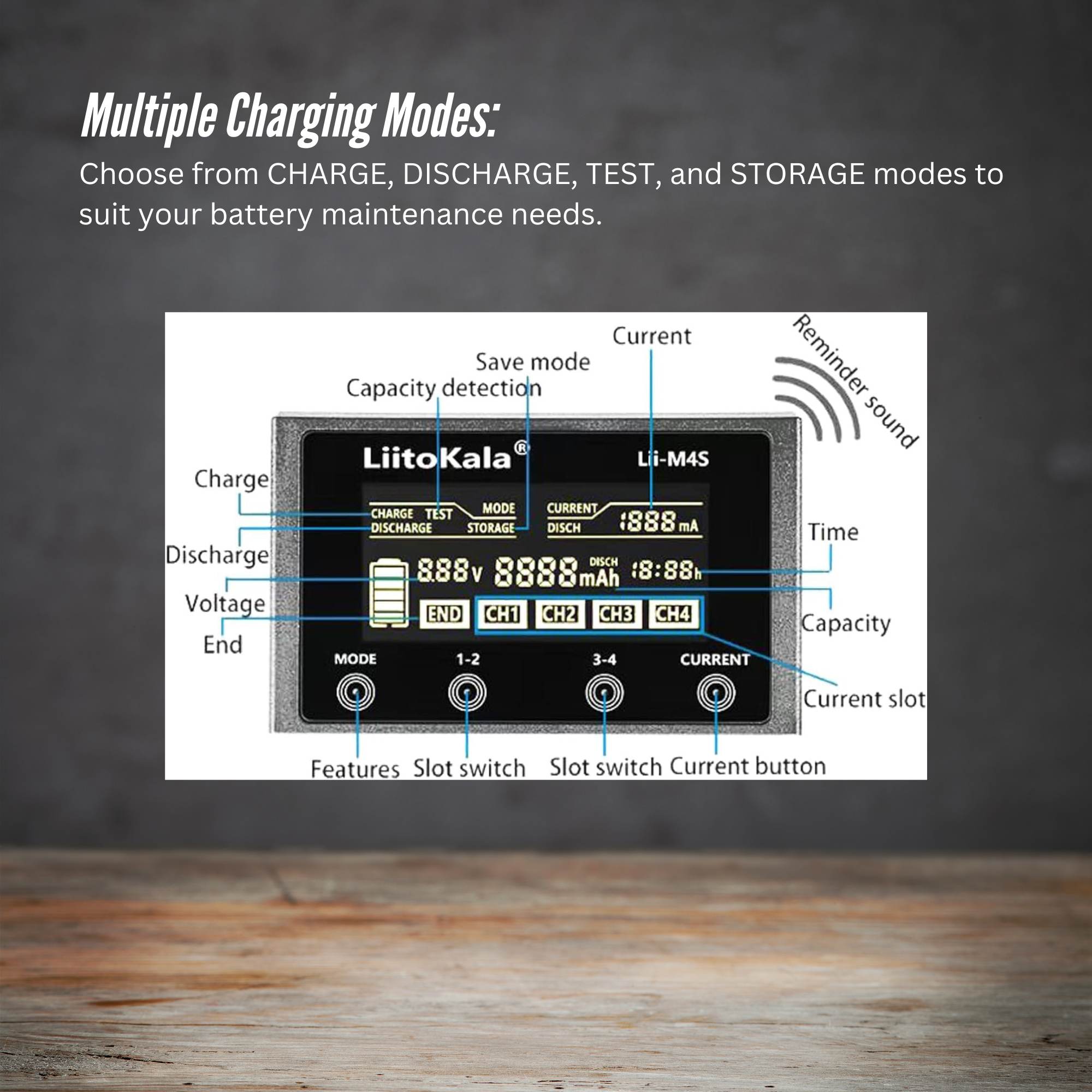

• Multiple Charging Modes: Choose from CHARGE, DISCHARGE, TEST, and STORAGE modes to suit your battery maintenance needs.

• LCD Display: Monitor voltage, current, capacity, and time for each battery slot in real-time.

• Independent Channels: Each of the four slots operates independently, allowing for simultaneous charging of different battery types and sizes.

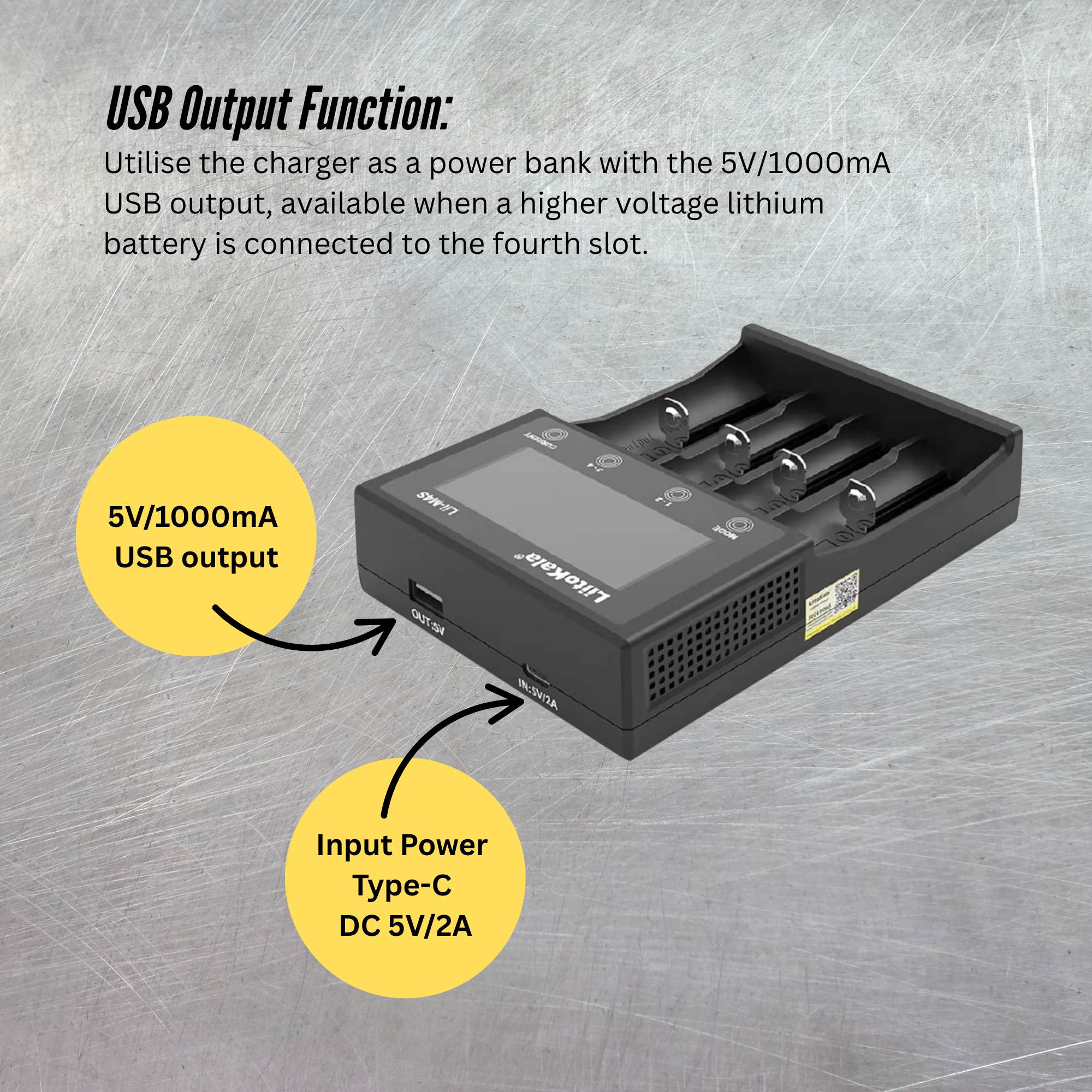

• USB Output Function: Utilise the charger as a power bank with the 5V/1000mA USB output, available when a higher voltage lithium battery is connected to the fourth slot.

Specifications:

• Model: LiitoKala Lii-M4S

• Input Power: Type-C DC 5V/2A

• USB Output: 5V—1000mA (effective when a higher voltage lithium battery is connected to the 4th channel)

• Charging Current:

  • Lithium Batteries: 4.20V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2

  • NiMH Batteries: 1.48V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2

• Discharge Current: 500mA

• Compatible Battery Types:

  • Li-ion: 26650, 22650, 18650, 18490, 18350, 17670, 17500, 17355, 16340, 14500, 10440

  • Ni-MH/NiCd: A, AA, AAA, SC

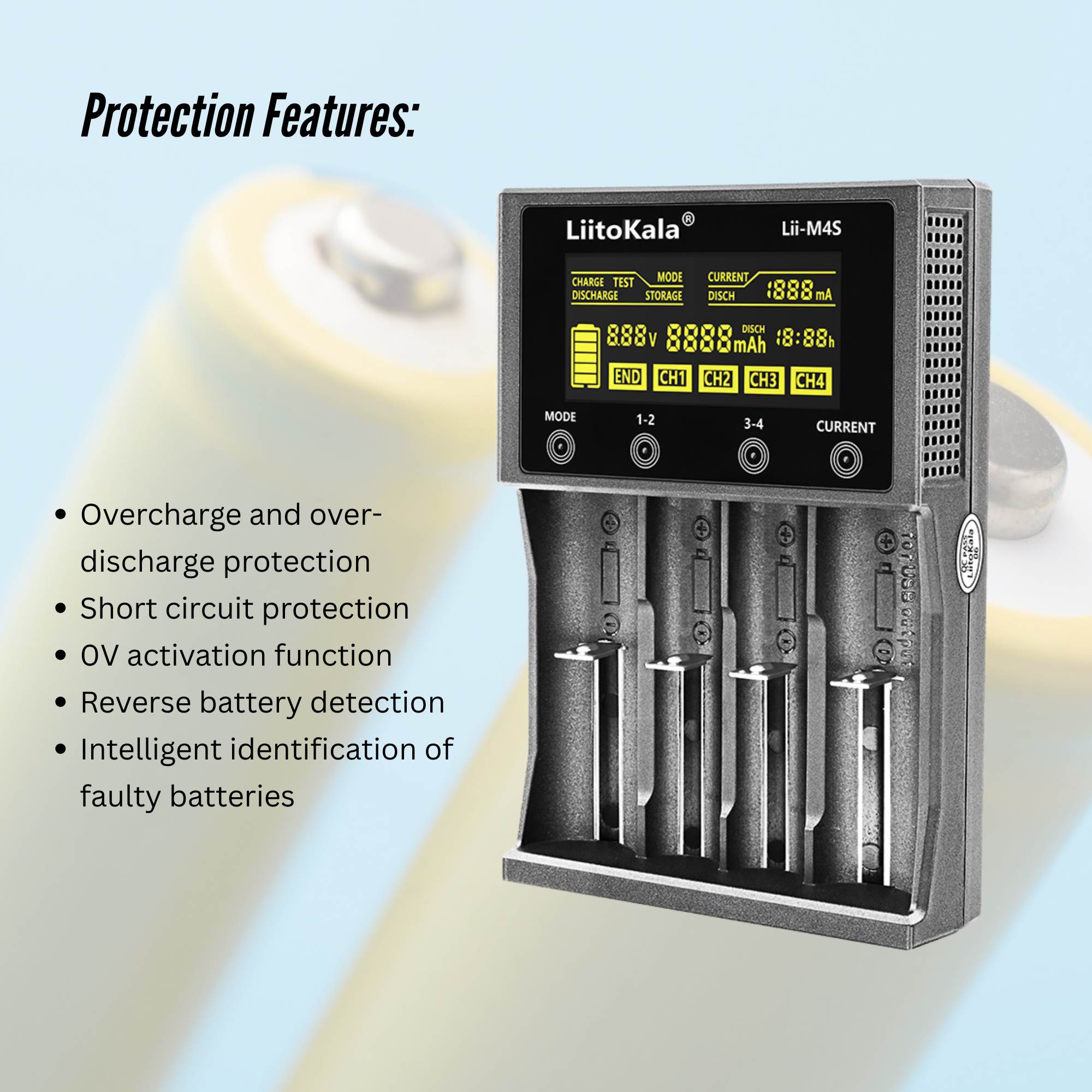

• Protection Features:

  • Overcharge and over-discharge protection

  • Short circuit protection

  • 0V activation function

  • Reverse battery detection

  • Intelligent identification of faulty batteries

• LCD Display Parameters:

  • Operating Mode (MODE)

  • Voltage (V)

  • Current (mA)

  • Time (h)

  • Capacity (mAh)

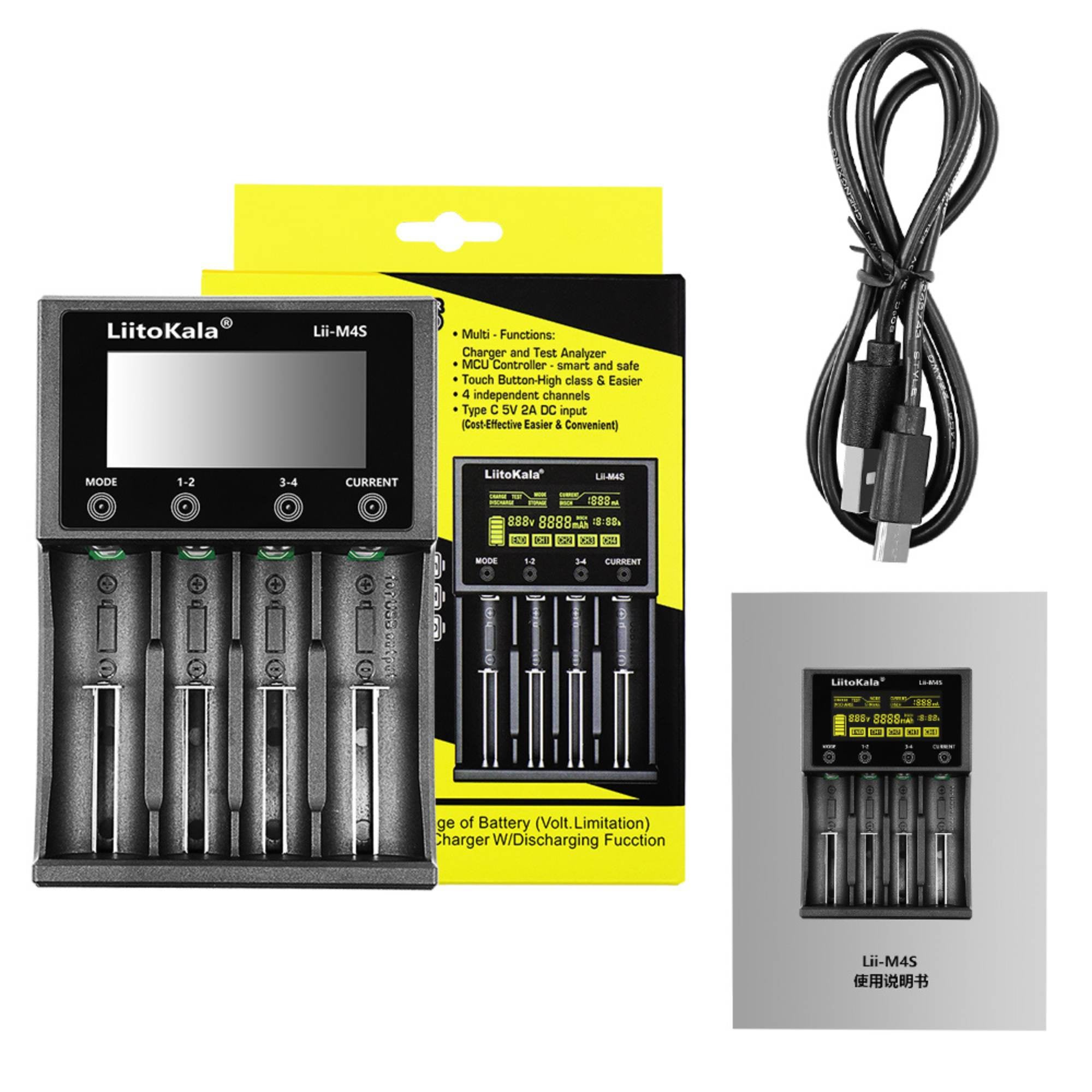

Package Includes:

• 1 × LiitoKala Lii-M4S Charger
• 1 × Type-C Charging Cable
• 1 × User Manual
